Brick Reinforcement Expanded Metal Mesh for Masonry Reinforcement

Brick reinforcement expanded metal mesh is mainly used to reinforce the brickwork of building door and window openings, aiming to reduce the damage caused by vibration and temperature changes and avoid cracking around door and window openings, thus enhancing the overall structure of the wall.

Our brick reinforcement expanded metal mesh is made of high quality galvanized steel or stainless steel sheet that has been slit and stretched. It is supplied in coils to facilitate workers using during construction.

Brick reinforcement expanded metal mesh details

Category

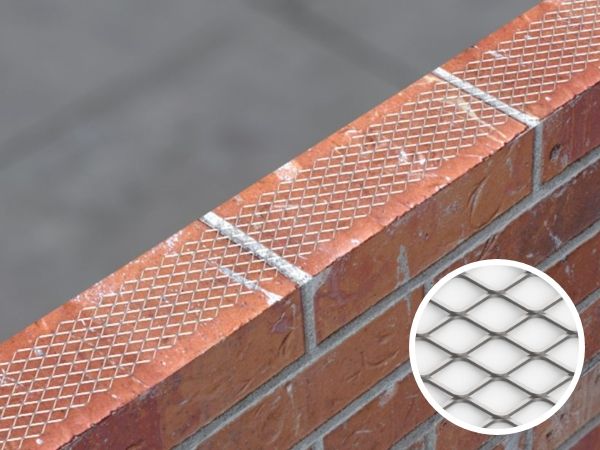

Diamond brick reinforcement expanded metal is applied on brick walls and mesh opening details.

Diamond brick reinforcement mesh

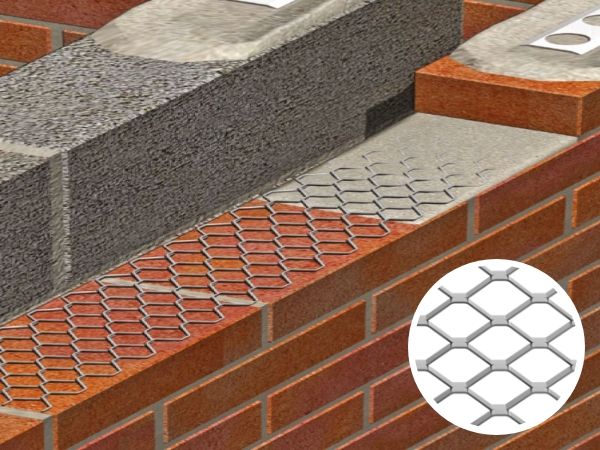

Hexagonal brick reinforcement expanded metal is applied on brick walls and mesh opening details.

Hexagonal brick reinforcement mesh

Features

Raised mesh surface provides good adhesion and high tensile stress resistance for stucco and plaster, thereby stabilizing the structure between bricks.
Effectively reduce the risk of cracking around brickwork of high stress areas, such as windows or doors.
Hot dip galvanized surface provides excellent corrosion resistance and a long lifespan.
Packed in coils, easy to transport and facilitate workers using during construction.

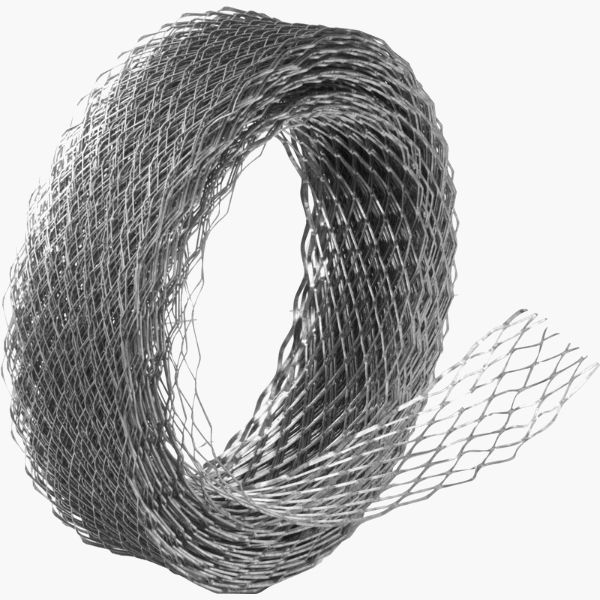

Brick reinforcement expanded metal mesh supplied in coils.

Specification

Specification of Brick Reinforcement Mesh
Material	Thickness (mm)	Hole Pattern	Opening Size (SWD × LWD/mm)	Coil Width (mm)	Length (m)
Galvanized steel, stainless steel	0.3–0.5	Diamond, hexagonal	15 × 25	65	20
				115	20
				178	20
				225	20
				305	20

How to Install?

When laying the brick reinforcement mesh, construction workers need to wear protective gloves to avoid injuries caused by sharp edges of the mesh.
The mesh should provide a minimum 25 mm gap to external faces.
If joining two lengths together, a minimum 75 mm overlap should be included.
For most brick reinforcement, the mesh can be laid every three courses.

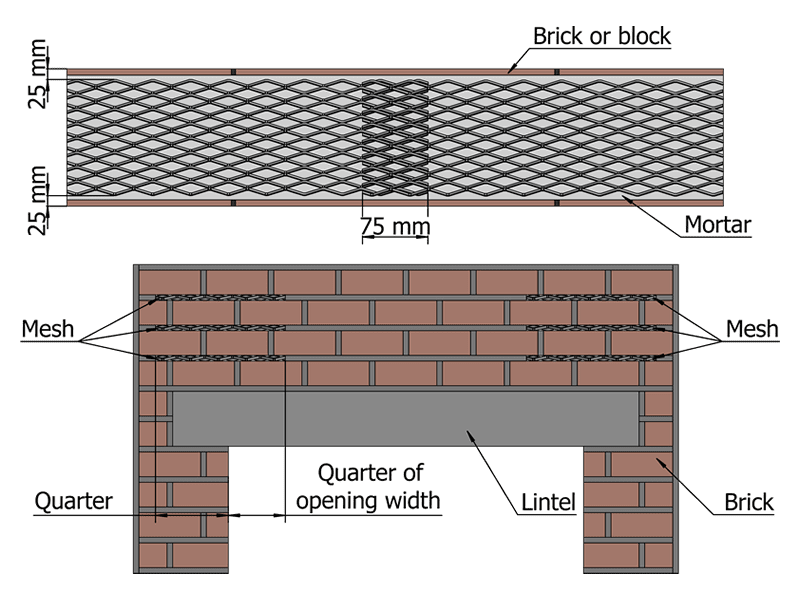

Brick reinforcement expanded metal mesh installation diagram
