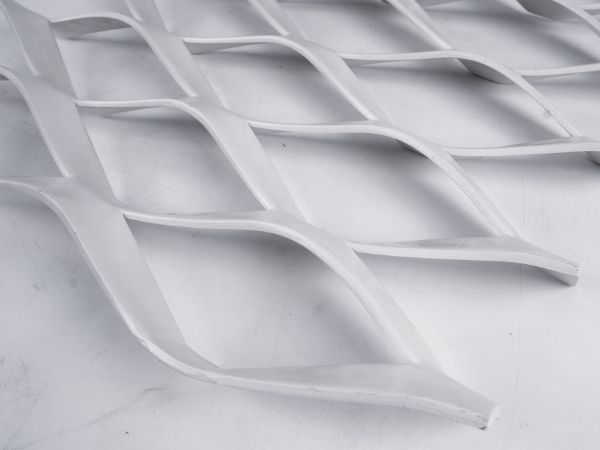

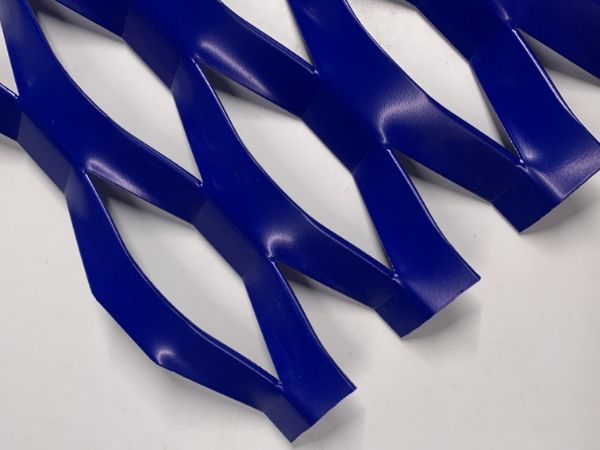

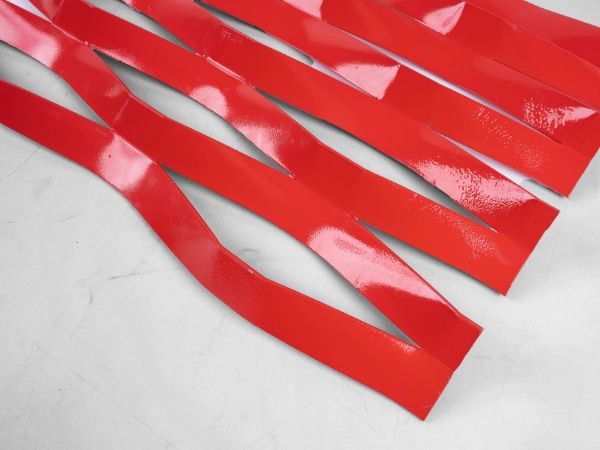

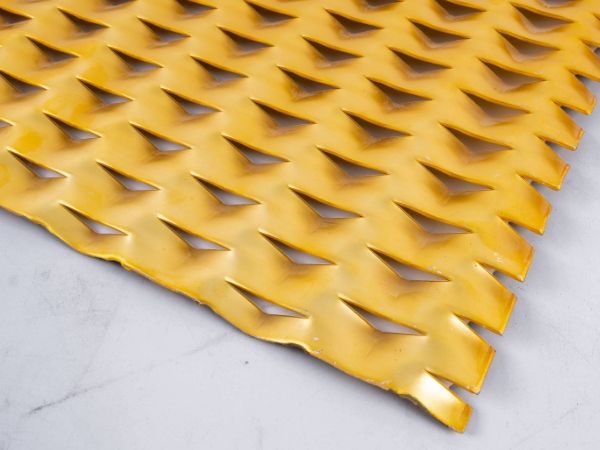

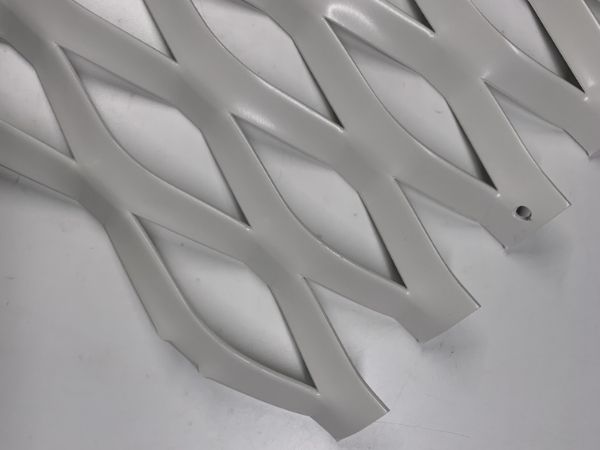

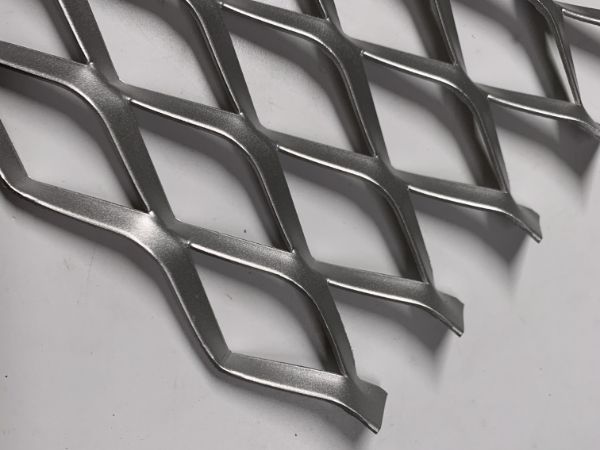

Expanded metal facade is a lightweight wall commonly used in modern large-scale or high-rise buildings to protect and decorate exterior walls. Decorative expanded metal is a popular facade material with extensive hole patterns and diversified colors and is widely used in shopping malls, commercial buildings, hotels, parking lots and other public buildings.
Expanded metal facade is generally made of 3 mm – 5 mm thick aluminum plate, lightweight and sturdy. Expanded metal with anodized or PVDF coated finish not only has attractive appearance, but also delivers excellent weather resistance and a long lifespan. As a result, it gains an ever-increasing popularity among architects and designers
Just contact us , our experienced team will make out custom building facade solution for you.
| Material | Thickness (mm) | Strand Width (mm) | SWD (mm) | LWD (mm) | Recommended Size: Width × Length (mm) | Remarks | |
|---|---|---|---|---|---|---|---|
| Size 1 | Size 2 | ||||||
| Aluminum | 2, 2.5, 3 | 8, 9, 10 | 34 | 75 | 1220 × 2000 | 2400×1200 | |
| 2, 2.5, 3 | 8, 9, 10 | 40 | 80 | 1220 × 2000 | 2400×1200 | ||
| 2, 2.5, 3 | 10, 12, 15 | 50 | 110 | 1220 × 2000 | 2400 ×1200 | ||
| 2, 2.5, 3 | 16, 18, 20 | 63 | 150 | 1220 × 2000 | 2400 × 1200 | ||
| 2, 2.5, 3 | 25, 28, 30 | 80 | 200 | 1220 × 2000 | 2400 × 1200 | Hexagonal (knuckle about 40 mm) | |
| 2, 2.5, 3 | 25, 28, 30 | 95 | 250 | 1220 × 2000 | 2400 × 1200 | ||
| 2, 2.5, 3 | 25, 28, 30 | 95 | 300 | 1220 × 2000 | 2400 × 1200 | ||
|
|||||||

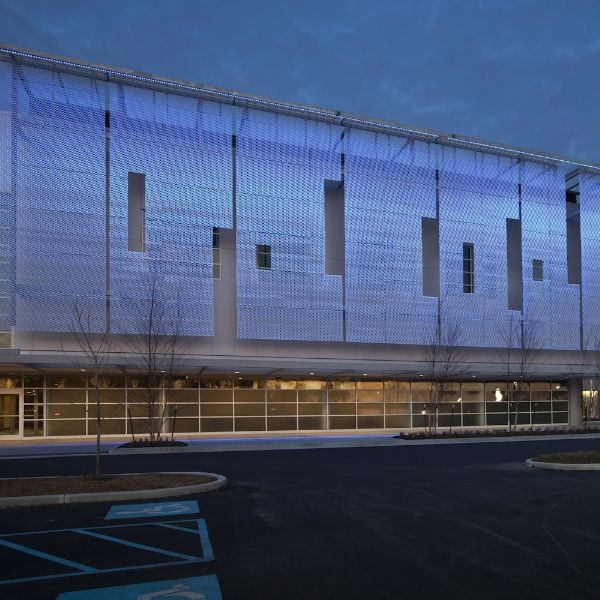

Exhibition
Shopping mall

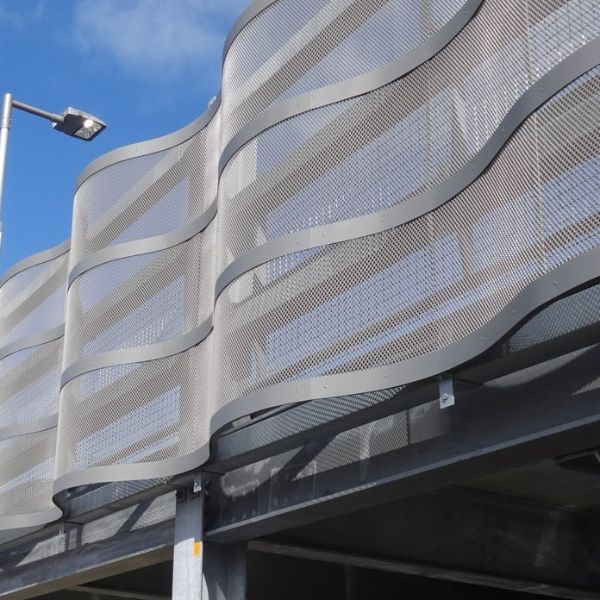

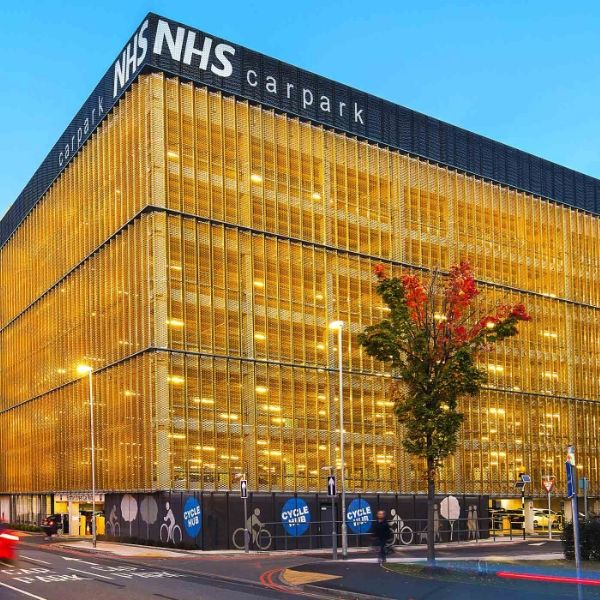

Parking lot

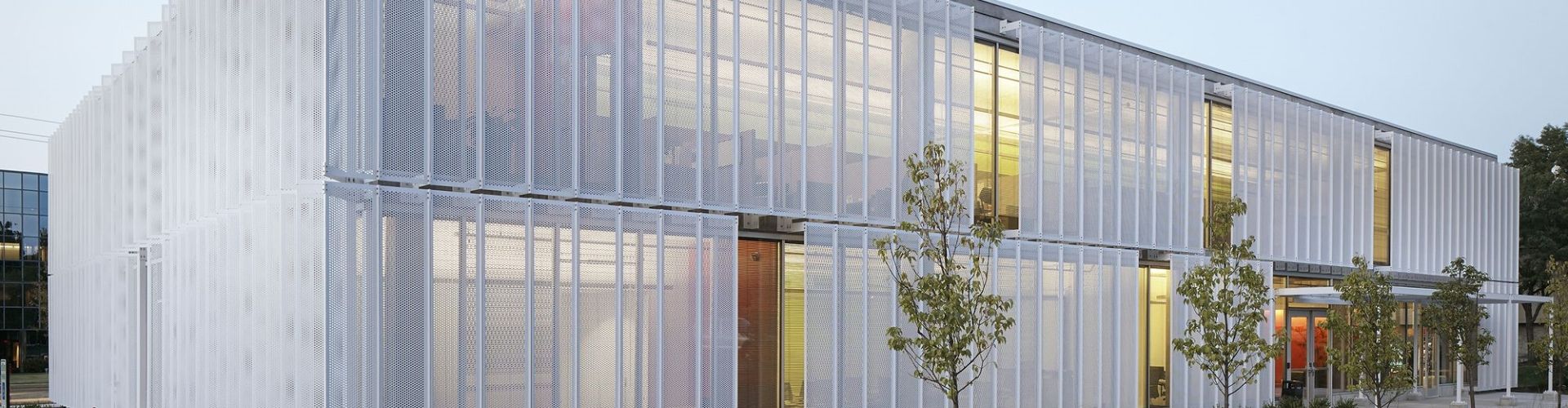

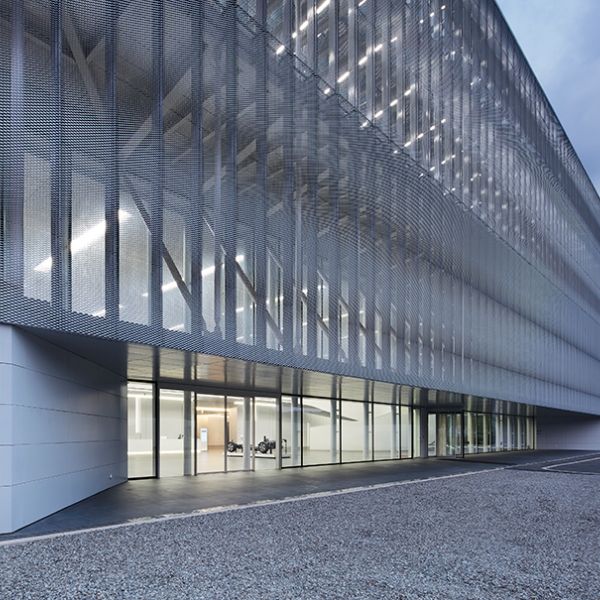

Office building
