Diamond brick reinforcement mesh
Construction
Home > Applications > Construction > Brick Reinforcement Expanded Metal Mesh
Brick reinforcement expanded metal mesh is mainly used to reinforce the brickwork of building door and window openings, aiming to reduce the damage caused by vibration and temperature changes and avoid cracking around door and window openings, thus enhancing the overall structure of the wall.
Our brick reinforcement expanded metal mesh is made of high quality galvanized steel or stainless steel sheet that has been slit and stretched. It is supplied in coils to facilitate workers using during construction.

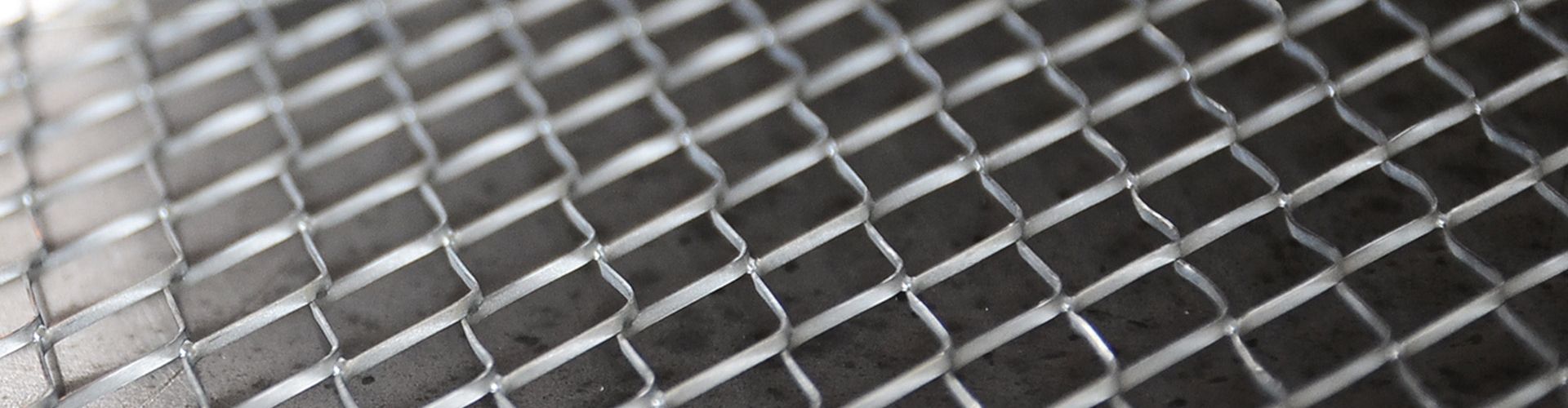

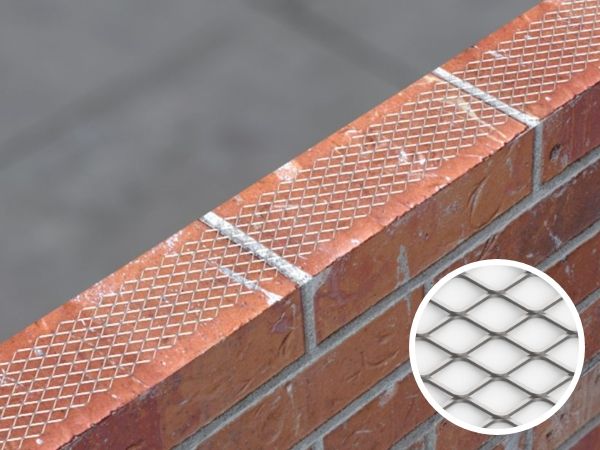

Diamond brick reinforcement mesh

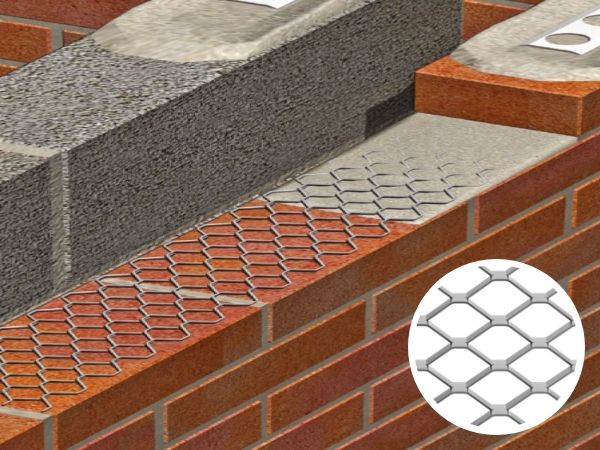

Hexagonal brick reinforcement mesh
Raised mesh surface provides good adhesion and high tensile stress resistance for stucco and plaster, thereby stabilizing the structure between bricks.
Effectively reduce the risk of cracking around brickwork of high stress areas, such as windows or doors.
Hot dip galvanized surface provides excellent corrosion resistance and a long lifespan.

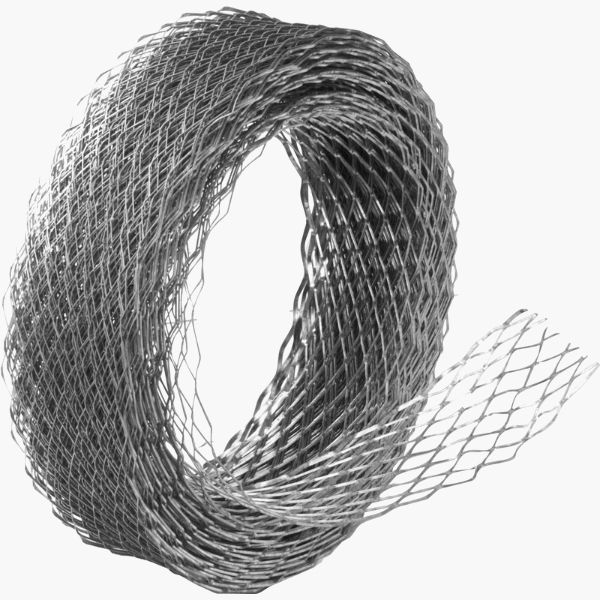

Packed in coils, easy to transport and facilitate workers using during construction.
| Material | Thickness (mm) | Hole Pattern | Opening Size (SWD × LWD/mm) | Coil Width (mm) | Length (m) |
|---|---|---|---|---|---|
| Galvanized steel, stainless steel | 0.3–0.5 | Diamond, hexagonal | 15 × 25 | 65 | 20 |
| 115 | 20 | ||||
| 178 | 20 | ||||
| 225 | 20 | ||||
| 305 | 20 |
When laying the brick reinforcement mesh, construction workers need to wear protective gloves to avoid injuries caused by sharp edges of the mesh.

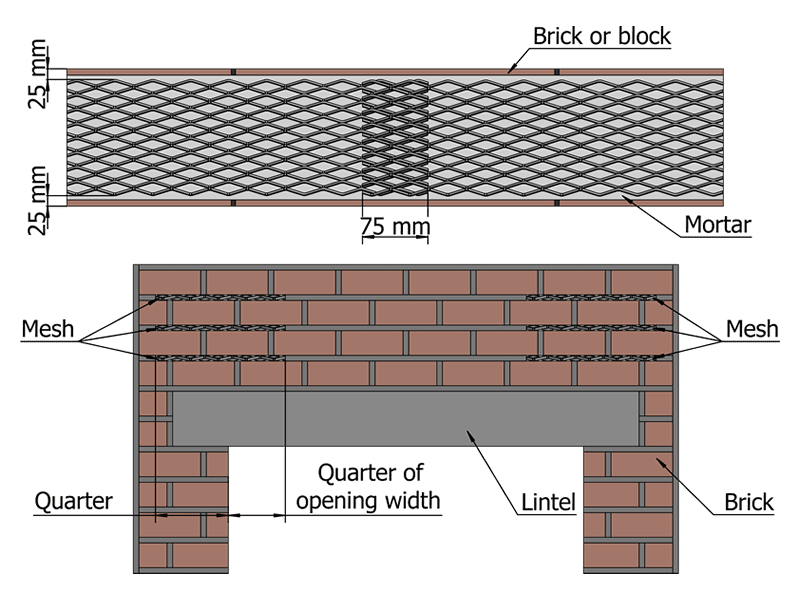

The mesh should provide a minimum 25 mm gap to external faces.
If joining two lengths together, a minimum 75 mm overlap should be included.
For most brick reinforcement, the mesh can be laid every three courses.
