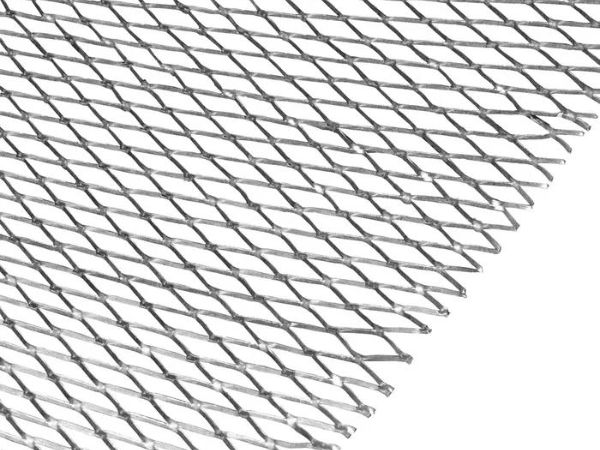

Flat diamond mesh lath
Generally made of raised expanded metal, it is mainly used as plaster base on building walls, ceilings and other large area places requiring reinforcement to prevent wall cracking and offer great impact resistance.
Construction

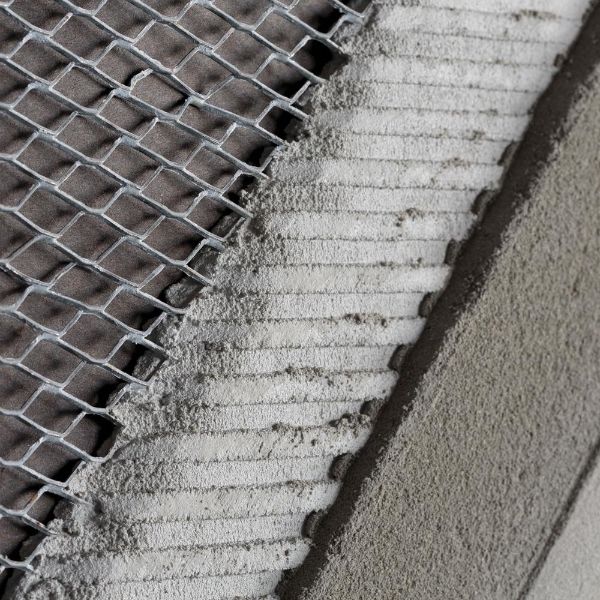

Expanded metal lath is often used as the base of wall plastering during construction to reinforce the building walls. Raised mesh surface enhances the adhesion of stucco and can effectively avoid wall cracking arising from concrete or plaster constriction, thus improving the quality of buildings. It is widely applied on concrete, brick, wood, plaster and other all surfaces.
Our expanded metal lath is made of high quality galvanized steel or stainless steel materials with excellent corrosion resistance. In addition, all our materials comply with ASTMA653 and ASTMC847 standard requirements.
Generally made of raised expanded metal, it is mainly used as plaster base on building walls, ceilings and other large area places requiring reinforcement to prevent wall cracking and offer great impact resistance.

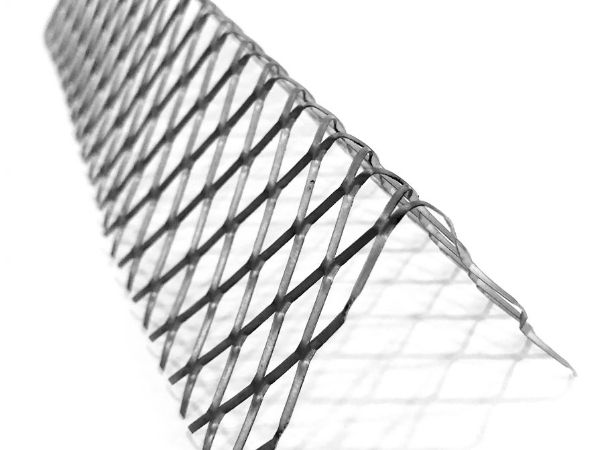

Expanded metal is bent to an angle that suits to the wall corner. It is typically used in corners where walls meet walls or ceilings for reinforcement to prevent wall cracking.

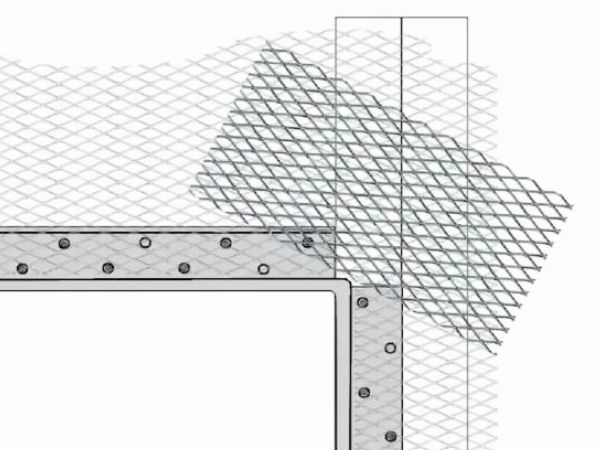

It is made of flattened expanded metal that has been cut into strips. It is generally installed at the window and door corners or areas that are prone to cracking to enhance its capacity against the concentration of stress and cracking.
| Material | Thickness (mm) | Opening Size (mm) | Weight (kg/m2) | |
|---|---|---|---|---|
| SWD | LWD | |||
| G60 galvanized steel | 0.50 | 10 | 20 | 1.11 |
| 0.70 | 10 | 20 | 1.61 | |
| 0.40 | 10 | 20 | 0.90 | |
| 0.90 | 9 | 29 | 2.62 | |
| 0.40 | 9 | 29 | 1.15 | |
| 0.50 | 9 | 29 | 1.92 | |
| Finish: hot dip galvanized, zinc coating is greater than 183 g/m2 and complies with and exceeds ASTMA653 standard requirements. | ||||

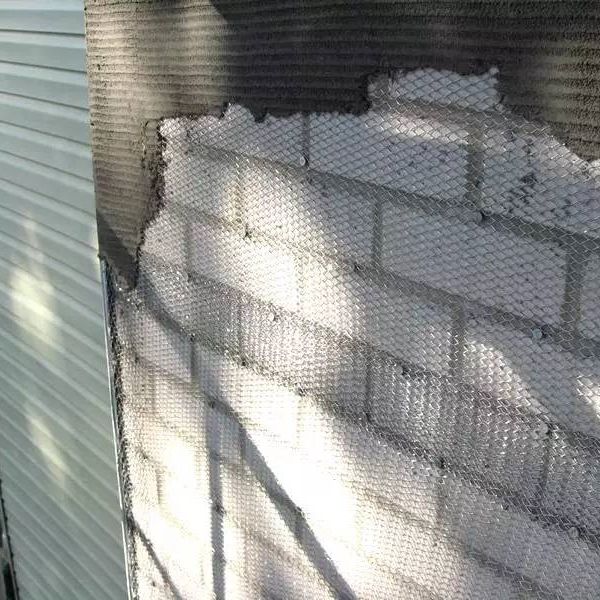

Brick wall reinforcement
Concrete wall reinforcement

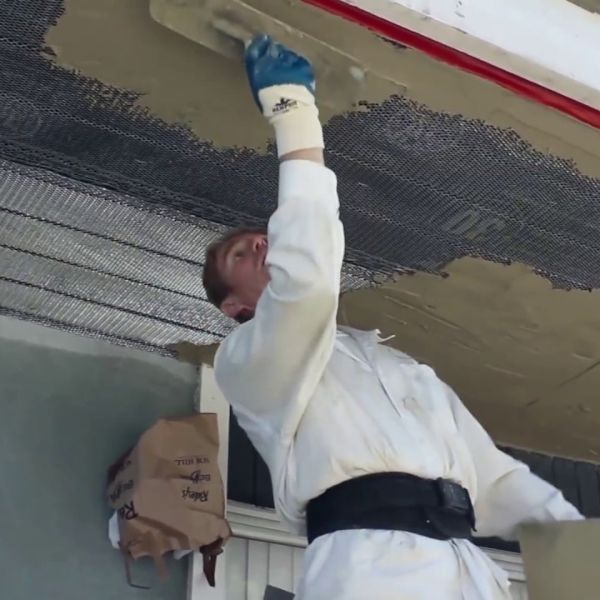

Ceiling reinforcement
