Expanded metal walkway offers high load capacity and excellent anti-skid performance. So, it is widely used in various industries to provide a safe passage for construction, transportation, maintenance activities, for example, overpass walkway, oil and gas platform, offshore platform, solar panel construction, roof platform systems, etc.
We can supply aluminum, carbon steel, stainless steel and other expanded metal walkways. They are generally have galvanized or powdered coated treated to enhance its corrosion resistance and extend its service life.
Excellent anti-skid performance. Raised mesh surface enhances the fraction between underfoot and walkway contact area to prevent pedestrians from slipping and ensure walking security.
High load capacity. Made of 3 mm – 8 mm thick steel plates that are thicker than standard expanded metal, no welding joint. Besides, large strand width and opening size also deliver higher load capacity.
Corrosion resistance. Galvanized or powder coated surface makes it have excellent resistant to acids and bases.
Easy maintenance. Opening design makes the dirt, rain and snow fall off smoothly, reduce the frequency of cleaning and maintenance.

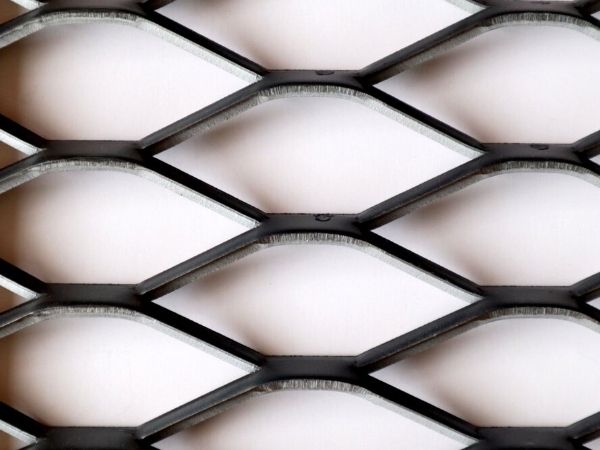

Diamond

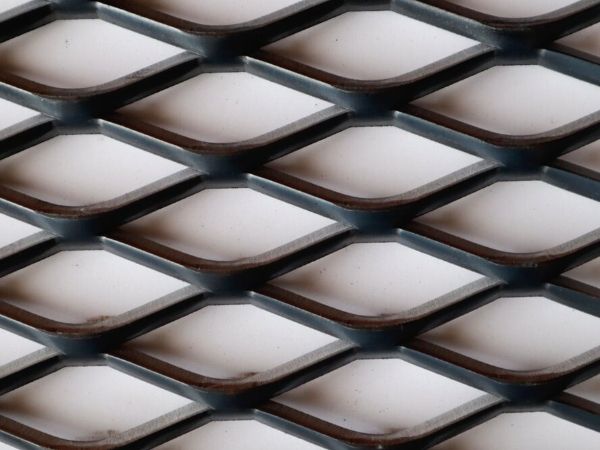

Hexagonal
| Material | Opening Size (mm) | Strand (mm) | Weight (kg/m2) | ||
|---|---|---|---|---|---|
| SWD | LWD | Thickness | Strand Width | ||
| Carbon steel, galvanized steel, aluminum | 30 | 75 | 3.0 | 7.0 | 10.70 |
| 34 | 76 | 4.0 | 5.0 | 8.80 | |
| 30 | 75 | 5.0 | 7.5 | 23.00 | |
| 42 | 135 | 5.0 | 8.0 | 14.05 | |
| 30 | 75 | 5.0 | 10.5 | 27.00 | |
| 45 | 135 | 5.0 | 11.0 | 19.00 | |

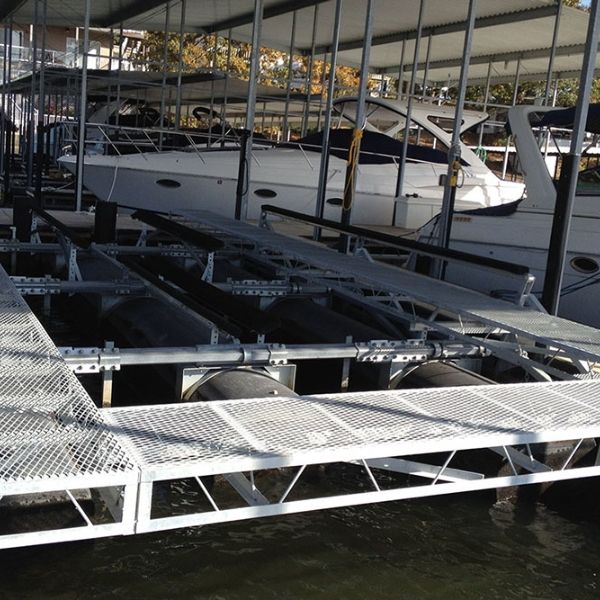

Surface platform walkway

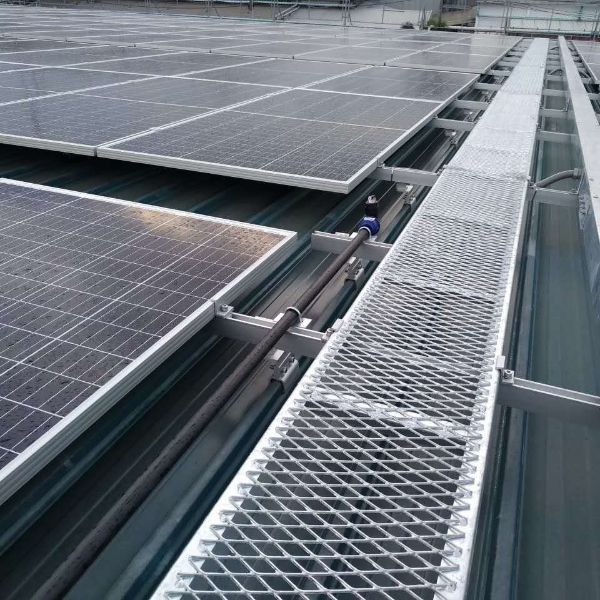

Solar panel walkway

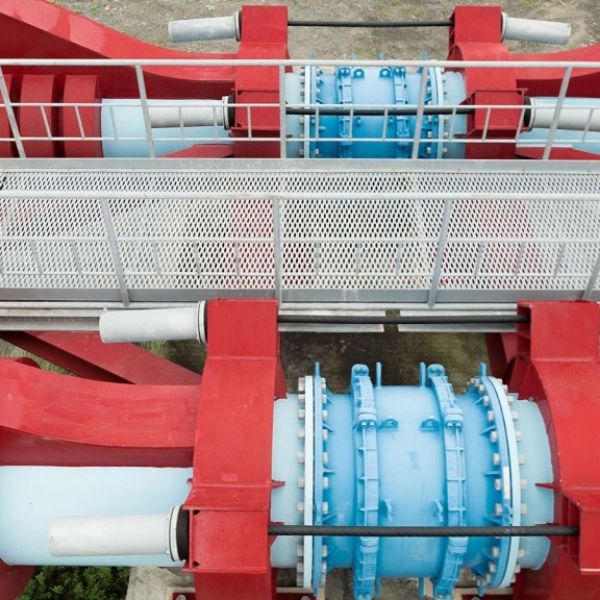

Overhead pipe walkway

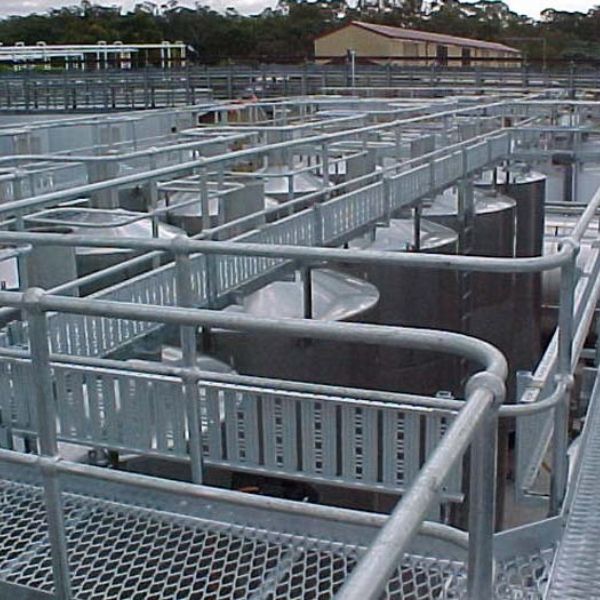

Industrial platform walkway
