Expanded Metal Stair Treads Provide Safe Footstep for Pedestrians

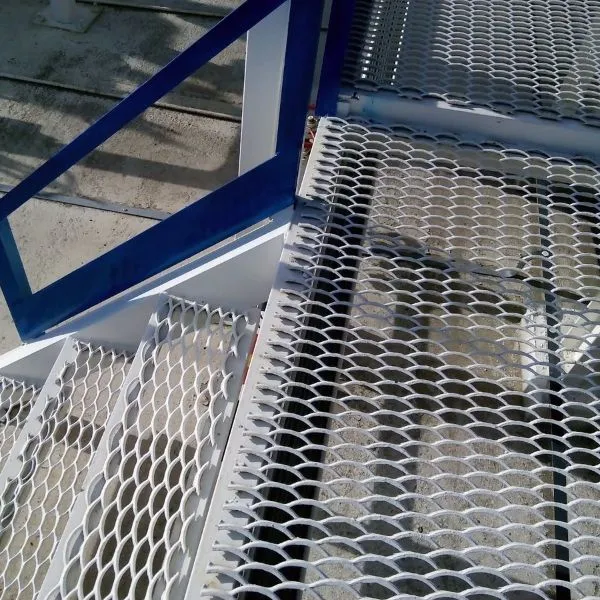

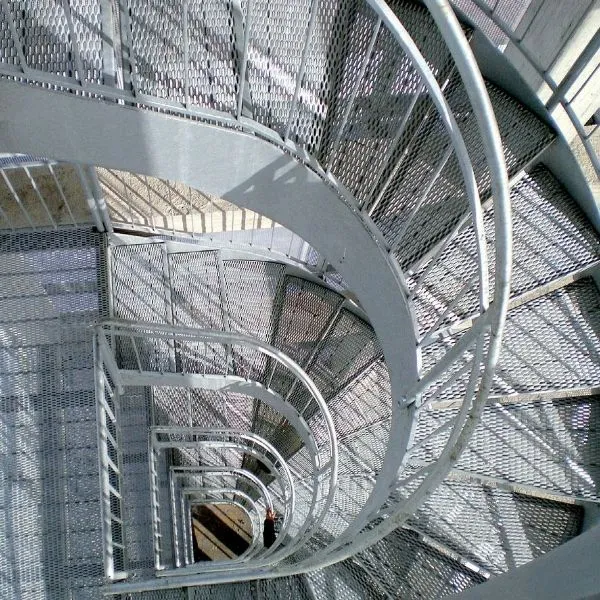

Expanded metal stair treads have excellent anti-skid performance and high load capacity, and are very suitable for moving stairs, stationary stairs and spiral stairs in project construction. We can provide expanded metal stair treads perfect match up with your application environments to provide safety protection for your construction workers.

Features

● Excellent anti-skid performance makes pedestrians free from falling risks arising from slipping.

● Rigid structure offers high load capacity and strong, stable support.

● Diamond openings help snow, water, grease and fluid to drain out.

● Unique surface structure can effectively avoid dazzling feeling when people looking down from a high place.

Specification

Stair Treads

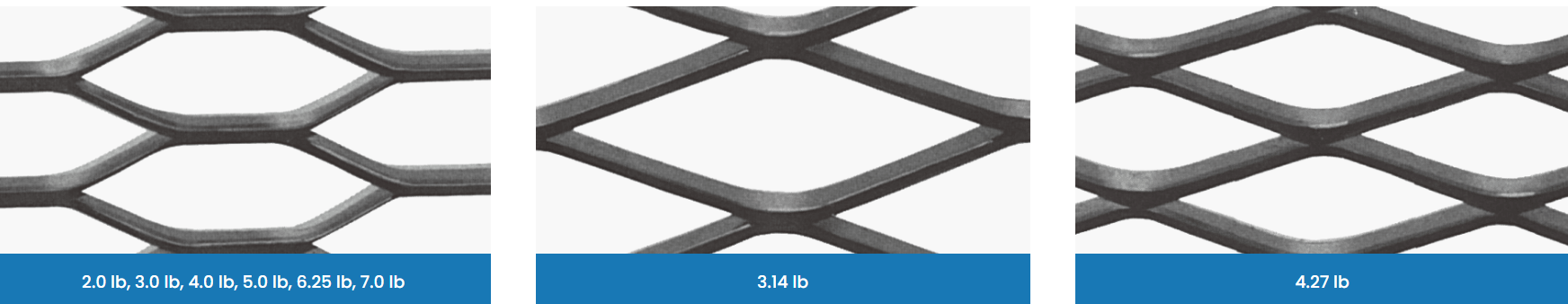

Table 1: Carbon Steel Expanded Metal Stair Treads
Material	Weight (lbs./ft²)	Opening Size (Inch)		Strand (Inch)		Open Area
Material	Weight (lbs./ft²)	SWD	LWD	Width	Thickness	Open Area
Carbon steel	2.00	1.33	5.33	0.24	0.14	77%
	3.00	1.33	5.33	0.26	0.18	60%
	3.14	2.00	6.00	0.31	0.25	69%
	4.00	1.33	5.33	0.30	0.22	55%
	4.27	1.41	4.00	0.30	0.25	58%
	5.00	1.33	5.33	0.33	0.25	50%
	6.25	1.41	5.33	0.35	0.31	50%
	7.00	1.41	5.33	0.39	0.32	45%

Table 2: Stainless Steel Expanded Metal Stair Treads
Material	Weight (lbs./ft²)	Opening Size (Inch)		Strand (Inch)		Open Area
		SWD	LWD	Width	Thickness
Stainless steel	3.32	2.00	6.00	0.31	0.25	69%
	4.25	1.41	4.00	0.30	0.25	58%

Table 3: Aluminum Expanded Metal Stair Treads
Material	Weight (lbs./ft²)	Opening Size (Inch)		Strand (Inch)		Open Area
Aluminum	2.00	SWD	LWD	Width	Thickness	48%
		1.33	5.33	0.39	0.25

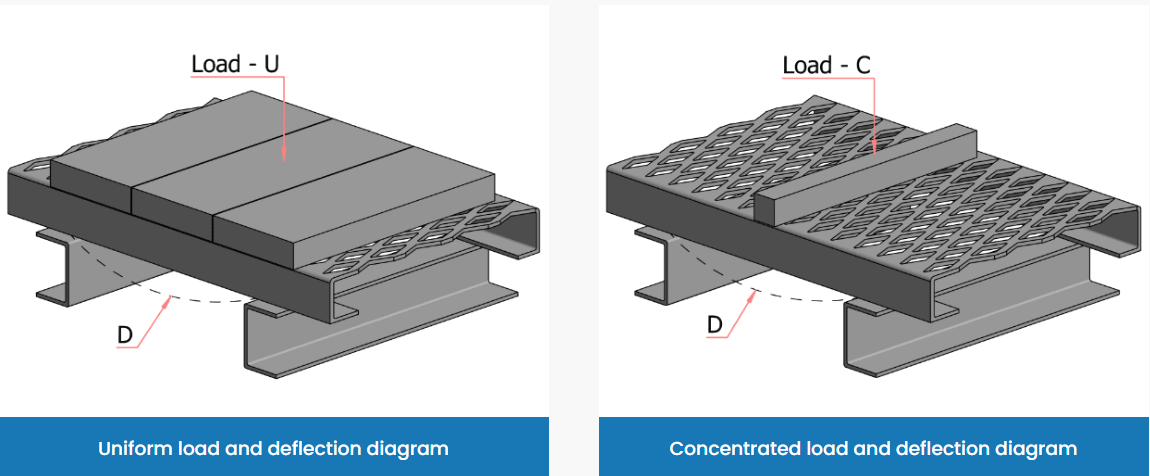

Load Capacity Diagram

The load capacity of expanded metal stair treads is mainly reflected in 2 aspects of transverse uniform load and concentrated load. Our expanded metal stair treads comply with EMMA 557-15 standard requirements.

Stair Treads

Table 4: Carbon Steel Expanded Metal Stair Tread Concentrated Load & Deflection Table
Style (lbs./ft²)	Concentrated Load C (lb./ft.) & Deflection D (in.)	24-Inch Span	36-Inch Span
3.0#	C	274	126
3.0#	D	0.25	0.25
3.14#	C	340	117
3.14#	D	0.25	0.25
4.0#	C	468	201
4.0#	D	0.25	0.25
4.27#	C	419	196
4.27#	D	0.25	0.25
Notes· The allowable tolerance for weight per square foot is ±5%.· Both ends of the tested expanded metal stair tread have been welded to a fixed metal frame.

Table 5: Aluminum Expanded Metal Stair Tread Concentrated Load & Deflection Table
Style (lbs./ft²)	Concentrated Load C (lb./ft.) & Deflection D (in.)	24-Inch Span	36-Inch Span
2.0#	C	320	136
2.0#	D	0.25	0.25
Notes· he allowable tolerance for weight per square foot is ±5%.· Both ends of the tested expanded metal stair tread have been welded to a fixed metal frame.·
