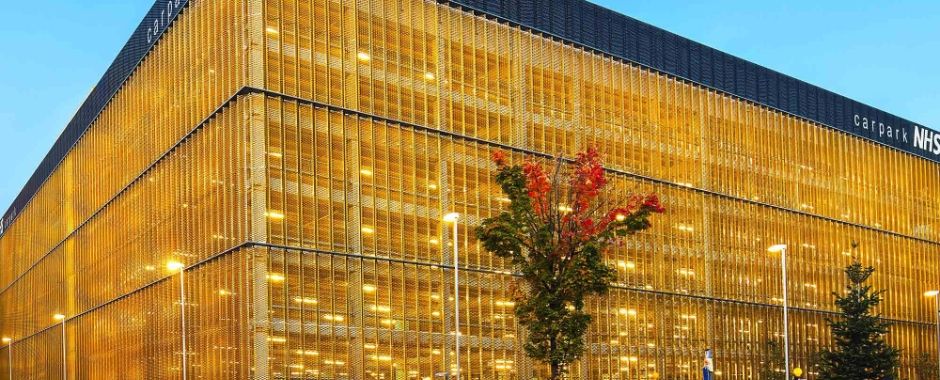

Decorative expanded metal is a new building decoration material generally made of aluminum or lightweight steel plate after slitting and stretching. It comes in a variety of powder coated, anodized and PVDF finishes, and features lightweight, high load capacity, good corrosion resistance and anti-aging. It not only brings unique charm to buildings, but also offers best practical functions. So, it is an eco-friendly building decoration material popular among architectural designers.
We offer decorative expanded metal products in a variety of materials, colors and hole patterns for you to choose from. Just contact us, our professional designer will work with you and find the right expanded metal products and make out best custom solutions together.
Here, we demonstrate our common decorative expanded metal hole patterns. We can also develop your exclusive decorative expanded metal products according to your design concept to meet your specific requirements.

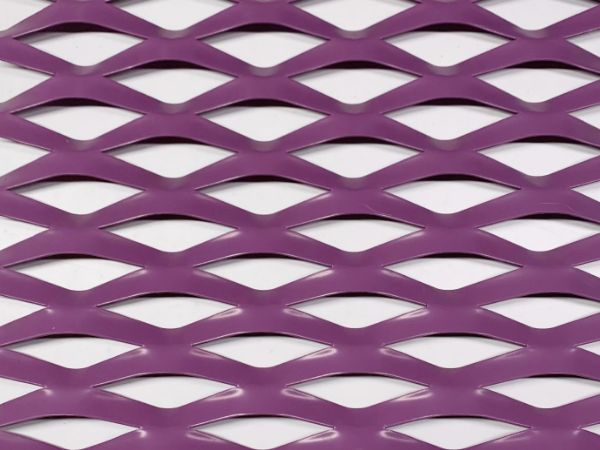

Diamond

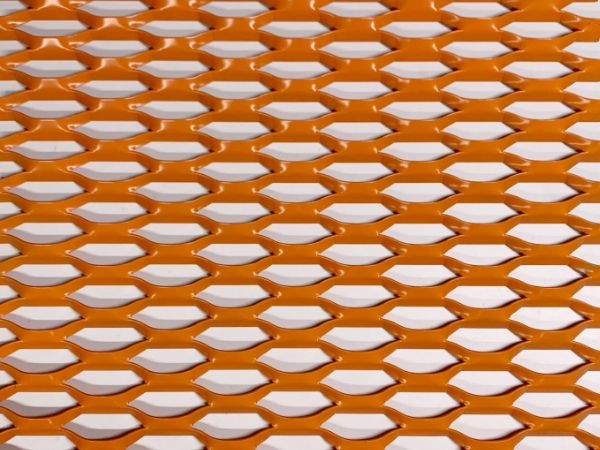

Hexagonal

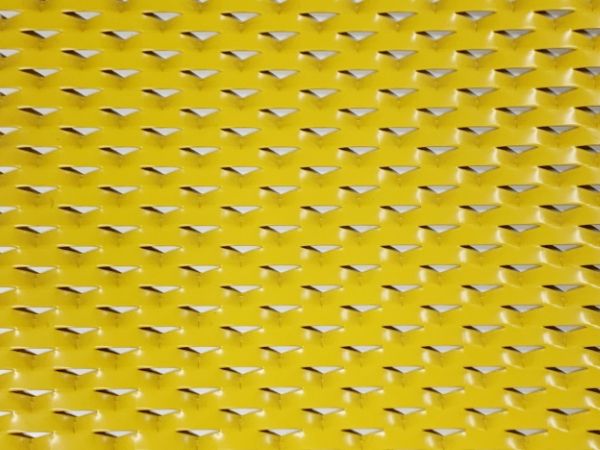

Triangle

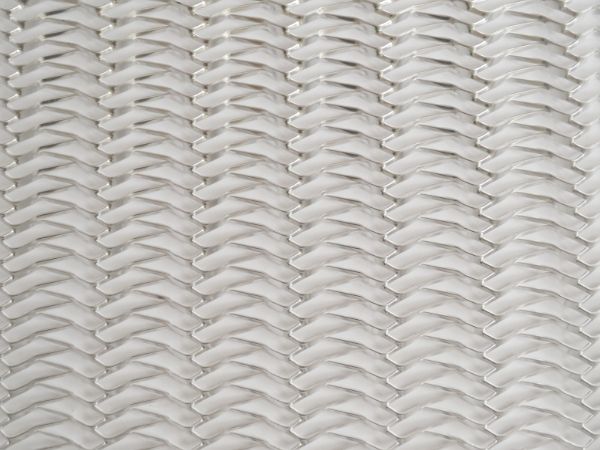

Special-shaped

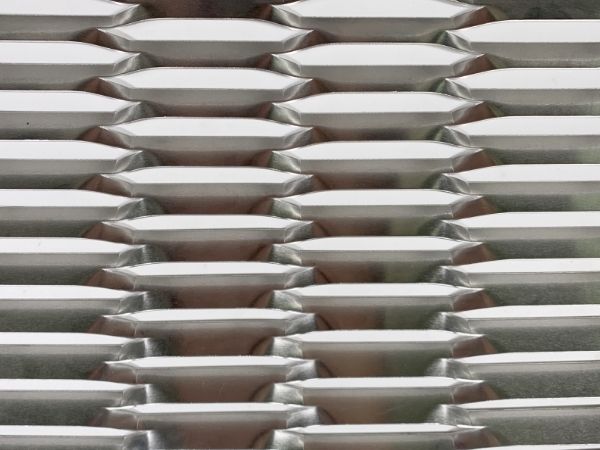

Elongated hexagonal

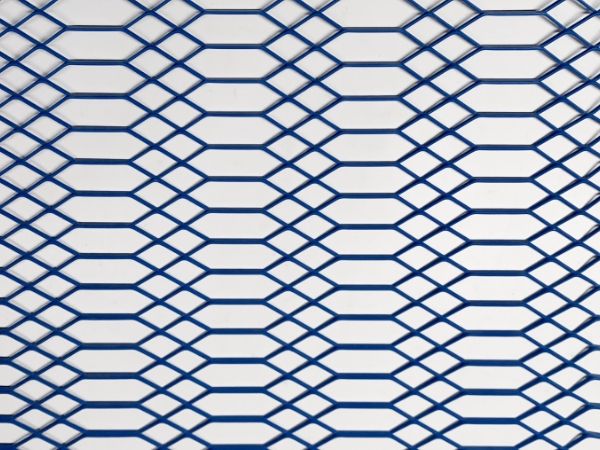

Gothic
| Thickness (mm) | Opening Size (mm) | Panel Size (mm) | Theoretical Weight (kg/m2) | |||
|---|---|---|---|---|---|---|
| SWD | LWD | Strand Width | LWM | SWM | ||
| 1.5 | 15 | 25 | 5 | 300–4000 | 300–4000 | 2.7 |
| 15 | 30 | 5 | 2.7 | |||
| 15 | 40 | 5 | 2.7 | |||
| 2.0 | 32 | 80 | 10 | 3.3 | ||
| 40 | 80 | 10 | 2.7 | |||
| 40 | 80 | 15 | 4.0 | |||
| 45 | 100 | 15 | 3.6 | |||
| 45 | 100 | 17 | 4.0 | |||
| 68 | 150 | 20 | 3.1 | |||
| 68 | 150 | 22 | 3.4 | |||
| 75 | 160 | 20 | 2.8 | |||
| 75 | 160 | 22 | 3.1 | |||
| 95 | 300 | 25 | 2.8 | |||
| 95 | 300 | 30 | 3.4 | |||
| 3.0 | 32 | 80 | 10 | 5.0 | ||
| 40 | 80 | 10 | 4.0 | |||
| 40 | 80 | 15 | 6.0 | |||
| 45 | 100 | 15 | 5.4 | |||
| 45 | 100 | 17 | 6.1 | |||
| 68 | 150 | 20 | 4.7 | |||
| 68 | 150 | 22 | 5.2 | |||
| 75 | 160 | 20 | 4.3 | |||
| 75 | 160 | 22 | 4.7 | |||
| 95 | 300 | 25 | 4.2 | |||
| 95 | 300 | 30 | 5.1 | |||
| 120 | 350 | 33 | 4.4 | |||
| 150 | 400 | 33 | 3.55 | |||
| 150 | 400 | 40 | 4.3 | |||
| Thickness (mm) | Opening Size (mm) | Panel Size (mm) | Theoretical Weight (kg/m2) | ||||
|---|---|---|---|---|---|---|---|
| SWD | LWD | Strand Width | Knuckle | LWM | SWM | ||
| 2.0 | 11 | 57 | 2 | 19 | 300–4000 | 300–4000 | 1.9 |
| 11 | 57 | 2.5 | 19 | 2.4 | |||
| 20 | 100 | 6 | 40 | 3.2 | |||
| 20 | 100 | 7 | 40 | 3.7 | |||
| 38 | 120 | 15 | 40 | 4.2 | |||
| 38 | 120 | 16 | 40 | 4.5 | |||
| 80 | 200 | 28 | 40 | 3.7 | |||
| 80 | 200 | 30 | 40 | 4.0 | |||
| 3.0 | 20 | 100 | 6 | 40 | 4.8 | ||
| 20 | 100 | 7 | 40 | 5.6 | |||
| 38 | 120 | 15 | 40 | 6.3 | |||
| 38 | 120 | 16 | 40 | 6.8 | |||
| 80 | 200 | 28 | 40 | 5.6 | |||
| 80 | 200 | 30 | 40 | 6.0 | |||

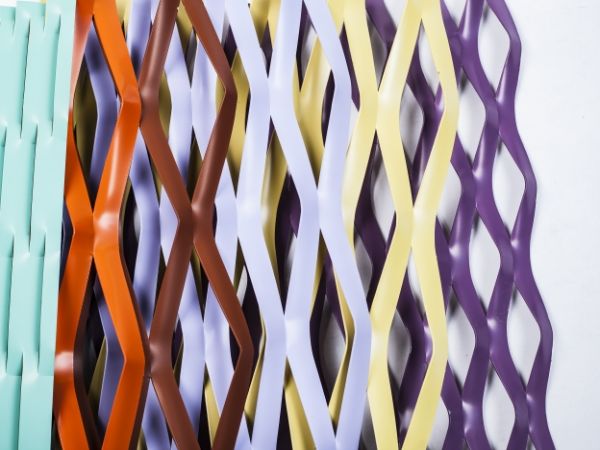

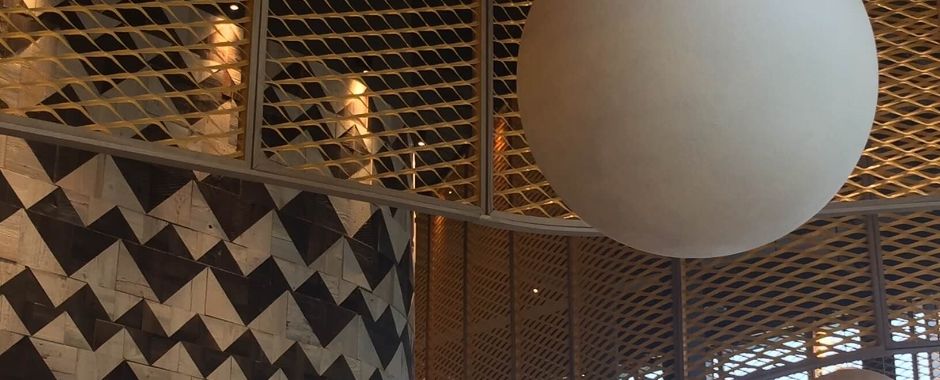

We use well known brand Akzo Nobel polyester and epoxy resin powder as our powder coating materials. The powder is sprayed on the surface of the expanded metal by electrostatic spraying machine and then baked at high temperature. It usually used in combination with galvanized steel expanded metal to provide excellent service life and smooth colorful surface. It is economical and eco-friendly, and is mostly used for indoor decoration.

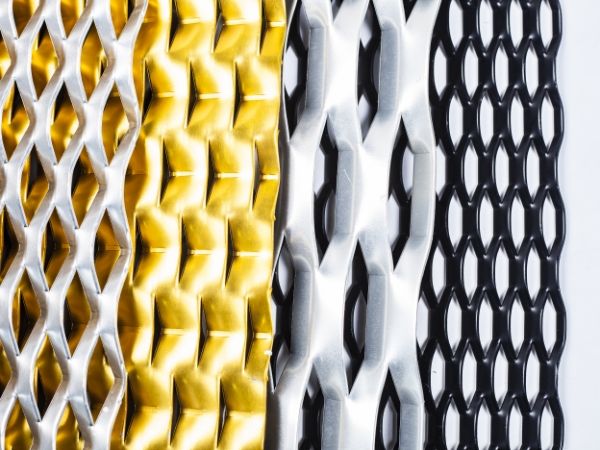

Anodizing is an electrolytic oxidation process that produces an oxide coating on the surface with good protective and decorative properties. It is usually used to perform aluminum and its alloy surface treatment. Anodized expanded metal has good corrosion resistance, scratch resistance and fire resistance. In addition, colorful metallic surface has good ornamental properties, so it is one of the most widely used surface treatment methods in the field of building decoration.

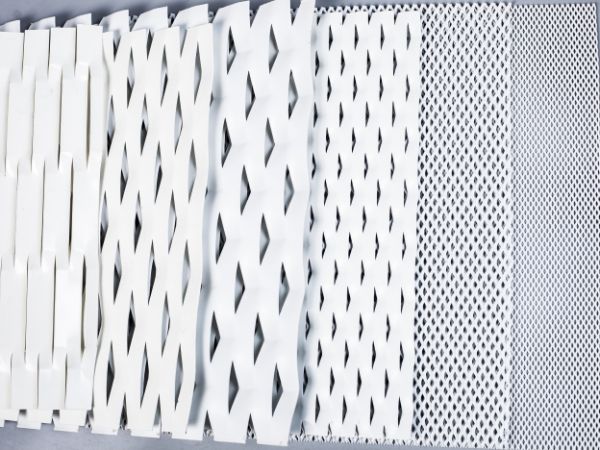

We use Akzo Nobel PVDF paint to spray on the surface of aluminum expanded metal to make it have excellent corrosion resistance, UV resistance and anti-cracking properties. PVDF coated decorative expanded metal enjoys a service life as long as 40 years. So, it generally used in hotels, shopping malls, villas and some other high-end buildings.
It will help us to quote and deliver your order faster and more accurately if your would like to provide the following information.
Here you may roughly calculate the weight of the expanded metal.
