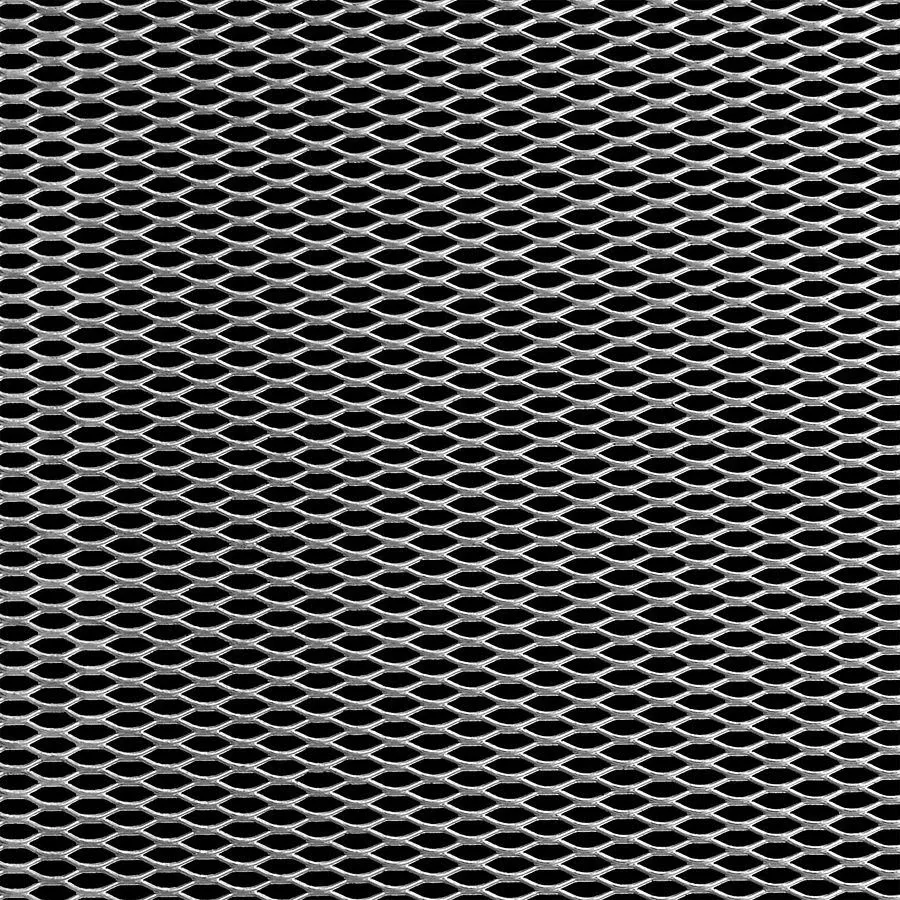

Stainless Steel Small Hole Expanded Metal

Details

Materials：Stainless Steel

Specification：Our capability covers LWD ranging from 0.75 mm up to 400 mm, and SWD ranging from 2 mm to 150 mm. Sheet thickness ranges from 0.3 mm to 15 mm, with a maximum width of 4000 mm.

Color：Customized Color

Packing：Customized Package

Category

Small Hole Expanded Metal

Send Inquiry

Anping Yilida Metal Wire Mesh Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel small hole expanded metal in China. Welcome to buy bulk durable stainless steel small hole expanded metal for sale here from our factory. If you have any enquiry about customized service, please feel free to email us.

Product Introduction

Our stainless steel small-hole expanded metal mesh boasts extremely high manufacturing precision. It undergoes meticulous stamping and stretching processes. These advanced manufacturing technologies play a crucial role in ensuring the uniform size of the small holes on the mesh surface. The tight structure of the mesh surface is the result of these processes, and it also ensures that there are no loose threads that could affect the integrity of the product.

We use top-grade 304 or 316L stainless steel plates. The selection of these high-quality materials endows the mesh with a number of excellent properties. Its outstanding corrosion resistance means that it can stand the test of time even in humid environments or environments with the risk of acid-alkali corrosion. The high-strength characteristic of the mesh surface ensures that it can withstand large pressure and stress without being easily deformed. Despite its high strength, it is lightweight, making it easy to transport and install. In addition, its good ventilation performance allows air or fluid (depending on specific application scenarios) to pass through smoothly.

Thanks to its excellent material properties and compact structural design, this product is widely used in various high-demand scenarios. In the food and pharmaceutical industries, it can be used as precision filter screens and sanitary protection nets; in the chemical and marine fields, it can serve as corrosion-resistant protection nets and filtering components. Moreover, it is also suitable for protective covers of medical equipment, architectural decorative panels, and ventilation nets of electronic devices, perfectly meeting the requirements for hygiene, corrosion and rust resistance, and fine protection in all these scenarios.

Hole Patterns

Diamond
Fan-shaped
Square
Round

Product Specification

Specifications of Stainless Steel Small Hole Expanded Metal

Style	Nominal Weight in lbs./100 Sq. Ft.^B	Design Size (inches)^C		Opening Size (inches)^C		Strand Size (inches)		Overall Thickness (inches)	Open Area
Style	Nominal Weight in lbs./100 Sq. Ft.^B	SWD	LWD	SWO	LWO	Width	Thickness	Overall Thickness (inches)	Open Area
3/32"-#24	56	0.140	0.240	0.084	0.135	0.040	0.024	0.083	43%
1/8"-#24	52	0.150	0.300	0.094	0.155	0.040	0.024	0.083	47%
3/16"-#24	26	0.190	0.500	0.145	0.375	0.034	0.018	0.069	64%
3/16"-#24	49	0.200	0.500	0.136	0.325	0.050	0.024	0.101	50%
3/16"-#24	72	0.210	0.500	0.131	0.308	0.060	0.031	0.122	43%
1/4"-#24	51	0.250	0.670	0.180	0.473	0.050	0.031	0.104	60%
^AA variation in weight per square ft. of ±10 % is permissible, based on the weight of any sheet or bundle. ^B A tolerance of ±10 % is permitted in dimensions, center to center.

Production Workflow

Raw material

We obtain our steel plate raw materials from leading suppliers including Baosteel and Shougang Group. Each batch is carefully inspected by our quality control personnel, who evaluate chemical composition, dimensions, and additional specifications to ensure adherence to quality requirements.
Stamping

Our manufacturing line includes 4000 mm ultra-wide expanded metal machines, flattening equipment, and leveling machines. With more than 1,000 precision molds developed in-house, we are able to provide expanded metal in wider dimensions. We can also customize or select mesh patterns according to application needs, ensuring optimal performance in load strength, appearance, ventilation, and shading.
Flattening

Our production line includes cutting, flattening, bending, and welding equipment, along with other deep-processing machinery. This allows us to supply expanded metal products that are processed and manufactured according to customer specifications.
Leveling

By utilizing high-precision leveling systems, we achieve uniform mesh openings and excellent surface flatness. With multiple CNC leveling machines and an experienced technical team, we optimize machine settings and implement strict quality inspections to maintain high productivity and consistent quality.
Surface treatment

We provide multiple surface treatment processes, including galvanizing, powder coating, anodizing, and PVDF coating. These finishes enhance corrosion resistance, extend product lifespan, and improve the decorative appearance of expanded metal.
Quality inspection

Technicians supervise key stages of production, including punching, flattening, shearing, and leveling, through real-time monitoring. This ensures consistent product quality while enabling timely identification and optimization of production processes.
Packaging

Considering the chemical and physical attributes of each product, we apply appropriate packaging materials that provide protection against water, moisture, and physical damage during transit. We can also develop customized packaging solutions to satisfy specific client requirements.
