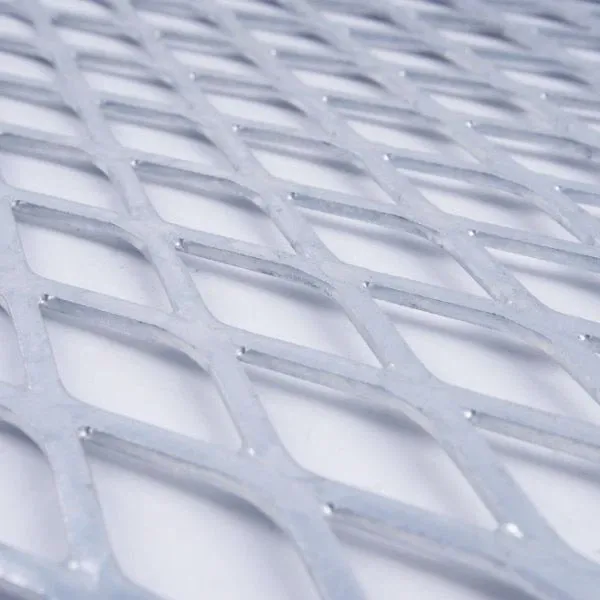

Carbon Steel Flattened Expanded Metal

Details

Materials：Carbon Steel

Specification：Our capability covers LWD ranging from 0.75 mm up to 400 mm, and SWD ranging from 2 mm to 150 mm. Sheet thickness ranges from 0.3 mm to 15 mm, with a maximum width of 4000 mm.

Color：Customized Color

Packing：Customized Package

Category

Flattened Expanded Metal

Send Inquiry

Anping Yilida Metal Wire Mesh Co., Ltd. is one of the leading manufacturers and suppliers of carbon steel flattened expanded metal in China. Welcome to buy bulk durable carbon steel flattened expanded metal for sale here from our factory. If you have any enquiry about customized service, please feel free to email us.

Product Introduction

Carbon Steel Flattend expanded metal mesh is a cost-effective and high-strength metal mesh product. Carbon steel plates are cut and stretched using professional equipment to form primary expanded mesh with diamond-shaped holes, which is then subjected to high-pressure flattening treatment. This process can make the mesh surface smooth, remove sharp edges, improve structural uniformity, and ensure that the mesh sheet, while maintaining overall strength, is easier to install and reprocess.

This product is made of high-quality Q195/Q235 carbon steel, benefiting from the excellent tensile strength, structural rigidity, and cost-effectiveness of this material. It inherits the inherent sturdiness of carbon steel and is suitable for heavy-duty operations as well as general protection scenarios that require both high strength and economy.

In the industrial field, it is very suitable for use in mezzanine floors, walkways, and stair treads. It can not only meet the safety and comfort requirements of walking surfaces but also retain the drainage and light transmission properties of the mesh sheet. In the mechanical field, it can be made into machine guards with strong protection and durability, featuring a clean and attractive surface, while ensuring unobstructed visibility and air circulation. In the logistics and transportation field, it is used for truck bed floors, trailer linings, and conveyor guards, and its flat surface facilitates the smooth movement of goods and equipment. In the architectural decoration field, its smooth surface makes it suitable for wall cladding, decorative screens, and signage.

Hole Patterns

Diamond
Fan-shaped
Square
Round

Product Specification

Specifications of Carbon Steel Flattened Expanded Metal

Style	Minimum Thickness (inches)^A	Nominal Weight in lbs./100 Sq. Ft.^B	Design Size (inches)^C		Opening Size (inches)^C		Strand Size (inches)		Overall Thickness (inches)	Open Area
Style	Minimum Thickness (inches)^A	Nominal Weight in lbs./100 Sq. Ft.^B	SWD	LWD	SWO	LWO	Width	Thickness	Overall Thickness (inches)	Open Area
¼"-#20	0.026	74	0.250	1.05	0.092	0.715	0.079	0.029	0.029	37%
¼"-#18	0.034	100	0.250	1.05	0.090	0.715	0.080	0.038	0.038	36%
½"-#20	0.026	37	0.500	1.26	0.342	1.000	0.079	0.029	0.029	68%
½"-#18	0.034	61	0.500	1.26	0.306	1.000	0.097	0.038	0.038	61%
½"-#16	0.043	77	0.500	1.26	0.304	1.000	0.098	0.048	0.048	61%
½"-#13	0.066	126	0.500	1.26	0.286	1.000	0.107	0.072	0.072	57%
¾"-#16	0.043	47	0.923	2.10	0.701	1.750	0.111	0.048	0.048	76%
¾"-#14	0.054	56	0.923	2.10	0.713	1.760	0.105	0.060	0.060	77%
¾"-#13	0.066	67	0.923	2.10	0.711	1.781	0.106	0.072	0.072	67%
¾"-#10	0.066	102	0.923	2.10	0.603	1.755	0.160	0.072	0.072	65%
¾"-#9	0.101	157	0.923	2.10	0.593	1.688	0.165	0.108	0.108	64%
1"-#16	0.043	38	1.000	2.52	0.804	2.250	0.098	0.048	0.048	80%
1½"-#16	0.043	35	1.330	3.15	1.092	2.750	0.119	0.048	0.048	82%
1½"-#14	0.054	43	1.330	3.15	1.098	2.750	0.116	0.060	0.060	83%
1½"-#13	0.066	51	1.330	3.15	1.098	2.750	0.116	0.072	0.072	83%
1½"-#9	0.101	105	1.330	3.15	1.014	2.563	0.158	0.108	0.108	76%
^A The minimum thickness is absolute, not subject to minus variation. ^B A variation in weight per square ft. of ±10 % is permissible, based on the weight of any sheet or bundle. ^C A tolerance of ±10 % is permitted in dimensions, center to center.

Production Workflow

Raw material

Steel plates used in our production are sourced from established suppliers like Baosteel and Shougang Group. After delivery, our quality inspection team conducts comprehensive checks on chemical composition, dimensions, and other relevant aspects to ensure full compliance with quality requirements.
Stamping

Our plant features 4000 mm ultra-wide expanded metal machines, along with flattening and leveling machinery. We have accumulated more than 1,000 precision molds developed through independent research and development. These resources allow us to meet the demand for wider expanded metal sheets and customize mesh patterns for load capacity, aesthetics, airflow, and shading performance.
Flattening

We have a complete set of deep-processing equipment, including cutting, flattening, bending, and welding machinery. These capabilities enable us to meet customers' specific processing and fabrication requirements for expanded metal products.
Leveling

We employ state-of-the-art leveling equipment to maintain a flat mesh surface and consistent opening patterns. With years of technical expertise and several CNC leveling machines, our specialists carefully adjust operating parameters to achieve optimal efficiency and superior product quality.
Surface treatment

Through advanced surface treatment techniques such as galvanizing, powder coating, anodizing, and PVDF coating, our expanded metal products achieve superior durability and a refined appearance suitable for architectural use.
Quality inspection

During manufacturing, real-time supervision is conducted by our technical team across key processes including punching, flattening, shearing, and leveling. This enables ongoing quality assessment and supports continuous improvements in both production efficiency and product quality.
Packaging

We use high-quality packaging materials that are waterproof, moisture-proof, and resistant to breakage, ensuring safe transportation of our products. In addition, customized packaging solutions can be arranged according to customer specifications.
