Galvanized Steel Flattened Expanded Metal

Details

Materials：Galvanized Steel

Specification：Our capability covers LWD ranging from 0.75 mm up to 400 mm, and SWD ranging from 2 mm to 150 mm. Sheet thickness ranges from 0.3 mm to 15 mm, with a maximum width of 4000 mm.

Color：Customized Color

Packing：Customized Package

Category

Flattened Expanded Metal

Send Inquiry

Anping Yilida Metal Wire Mesh Co., Ltd. is one of the leading manufacturers and suppliers of galvanized steel flattened expanded metal in China. Welcome to buy bulk durable galvanized steel flattened expanded metal for sale here from our factory. If you have any enquiry about customized service, please feel free to email us.

Product Introduction

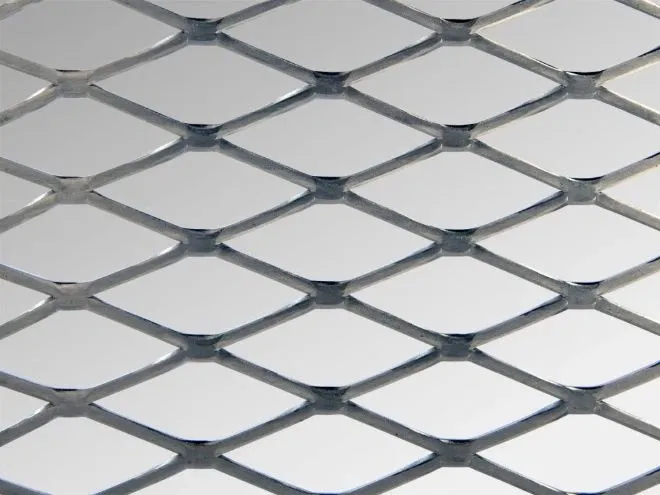

Galvanized flattened expanded metal mesh is crafted through a precise process: high-quality steel sheets are first slit and stretched to form a uniform diamond pattern, then flattened to ensure a smooth surface, followed by hot-dip galvanizing for superior corrosion resistance. This multi-step production ensures exceptional strength, durability, and a consistent structure.

Ideal for diverse applications, it shines in construction as safety barriers, concrete reinforcement, and facade cladding, offering robust protection and aesthetic appeal. In industrial settings, it serves as machine guards, ventilation grilles, and filtration screens, withstanding harsh environments. Agricultural uses include livestock enclosures and crop protection nets. Its lightweight yet sturdy nature also makes it perfect for fencing, partition walls, and temporary barriers in infrastructure projects. Combining functionality with longevity, this mesh is a reliable choice across sectors.

Hole Patterns

Diamond
Fan-shaped
Square
Round

Product Specification

Specifications of Galvanized Steel Flattened Expanded Metal

Style	Minimum Thickness (inches)^A	Nominal Weight in lbs./100 Sq. Ft.^B	Design Size (inches)^C		Opening Size (inches)^C		Strand Size (inches)		Overall Thickness (inches)	Open Area
Style	Minimum Thickness (inches)^A	Nominal Weight in lbs./100 Sq. Ft.^B	SWD	LWD	SWO	LWO	Width	Thickness	Overall Thickness (inches)	Open Area
¼"-#20	0.026	74	0.250	1.05	0.092	0.715	0.079	0.029	0.029	37%
¼"-#18	0.034	100	0.250	1.05	0.090	0.715	0.080	0.038	0.038	36%
½"-#20	0.026	37	0.500	1.26	0.342	1.000	0.079	0.029	0.029	68%
½"-#18	0.034	61	0.500	1.26	0.306	1.000	0.097	0.038	0.038	61%
½"-#16	0.043	77	0.500	1.26	0.304	1.000	0.098	0.048	0.048	61%
½"-#13	0.066	126	0.500	1.26	0.286	1.000	0.107	0.072	0.072	57%
¾"-#16	0.043	47	0.923	2.10	0.701	1.750	0.111	0.048	0.048	76%
¾"-#14	0.054	56	0.923	2.10	0.713	1.760	0.105	0.060	0.060	77%
¾"-#13	0.066	67	0.923	2.10	0.711	1.781	0.106	0.072	0.072	67%
¾"-#10	0.066	102	0.923	2.10	0.603	1.755	0.160	0.072	0.072	65%
¾"-#9	0.101	157	0.923	2.10	0.593	1.688	0.165	0.108	0.108	64%
1"-#16	0.043	38	1.000	2.52	0.804	2.250	0.098	0.048	0.048	80%
1½"-#16	0.043	35	1.330	3.15	1.092	2.750	0.119	0.048	0.048	82%
1½"-#14	0.054	43	1.330	3.15	1.098	2.750	0.116	0.060	0.060	83%
1½"-#13	0.066	51	1.330	3.15	1.098	2.750	0.116	0.072	0.072	83%
1½"-#9	0.101	105	1.330	3.15	1.014	2.563	0.158	0.108	0.108	76%
^A The minimum thickness is absolute, not subject to minus variation. ^B A variation in weight per square ft. of ±10 % is permissible, based on the weight of any sheet or bundle. ^C A tolerance of ±10 % is permitted in dimensions, center to center.

Production Workflow

Raw material

We rely on high-quality steel plates supplied by well-known companies including Baosteel and Shougang Group. Upon arrival, our quality control specialists carry out rigorous inspections covering chemical composition, dimensional accuracy, and other key properties.
Stamping

We are equipped with 4000 mm ultra-wide expanded metal production equipment, as well as flattening and leveling machines. With over 1,000 precision expanded metal molds developed internally, we can manufacture expanded metal in larger dimensions. Based on application requirements, we are able to design or select new mesh patterns to satisfy needs related to strength, ventilation, appearance, and shading.
Flattening

Our company operates various deep-processing machines such as cutting, flattening, bending, and welding equipment. With these resources, we can provide customized processing services to ensure expanded metal products meet precise application needs.
Leveling

High-precision leveling machines are used to produce flat mesh surfaces with uniform openings and exceptional flatness tolerance. Our experienced technicians manage multiple CNC leveling machines and implement strict quality control to ensure efficiency and eliminate unnecessary rework.
Surface treatment

We employ a range of finishing technologies, including galvanizing, powder coating, anodizing, and PVDF coating. These treatments ensure extended service life and an attractive finish for expanded metal used in construction and decoration.
Quality inspection

Technicians carry out real-time inspections throughout critical production steps such as punching, flattening, shearing, and leveling. This system ensures consistent quality control and helps identify areas where the production process can be further improved.
Packaging

To protect products during shipment, we use packaging materials that provide resistance to water, moisture, and physical impact, selected based on product characteristics. We also support customized packaging to meet diverse customer requirements.
