Carbon Steel Standard Expanded Metal

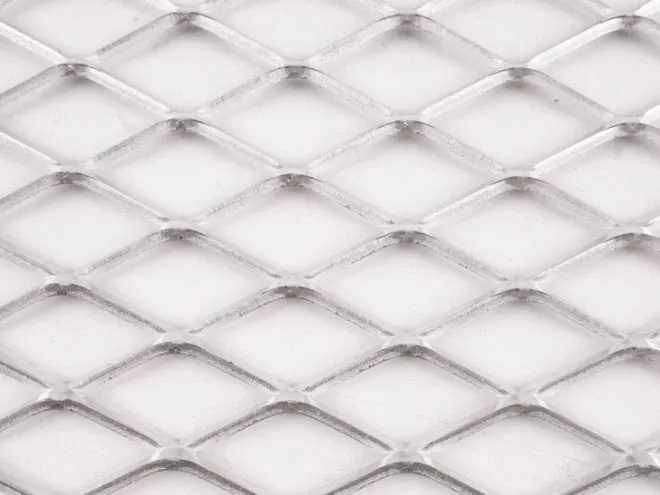

Standard expanded metal, also referred to as raised expanded metal, is manufactured by slitting and stretching metal sheets or coils simultaneously.

It boasts a surface with raised diamond-shaped openings, and its raised strands form an angle relative to the original plane of the solid sheet-this design enhances the product's strength, rigidity, and anti-skid performance significantly.Owing to these superior properties, it finds extensive applications across numerous fields, such as road fences, platforms, stair treads, and machine guarding.

We offer a wide range of standard expanded metal products crafted from high-quality materials, including carbon steel, galvanized steel, and aluminum. This ensures our products deliver optimal performance and long-lasting durability. Furthermore, we are committed to collaborating with you to develop custom expanded metal solutions tailored to your specific application needs through in-depth communication.

Inquire Now

Hole Patterns

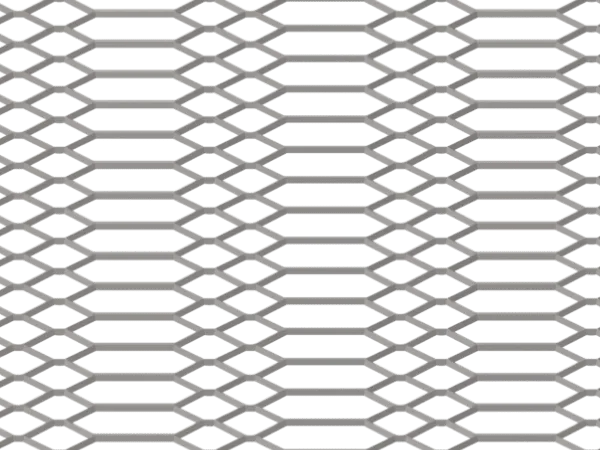

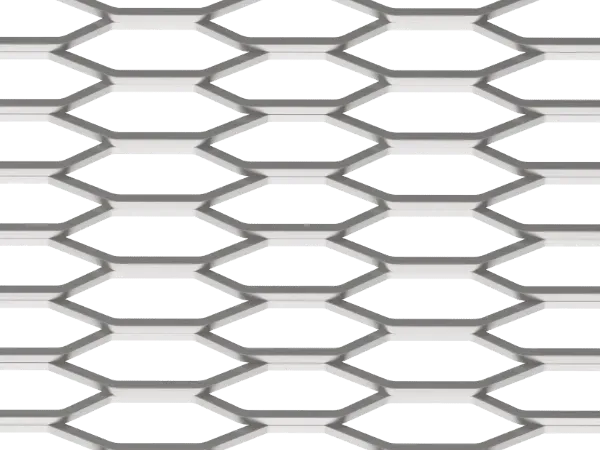

Diamond	Fan-shaped	Round	Gothic	Hexagonal

Product Specification

Table 1: Specifications of Carbon Steel Standard Expanded Metal
Style	Minimum Thickness (inches)^A	Nominal Weight in lbs./100 Sq. Ft.^B	Design Size (inches)^C		Opening Size (inches)^C			Strand Size (inches)			Overall Thickness (inches)	Open Area
Style	Minimum Thickness (inches)^A	Nominal Weight in lbs./100 Sq. Ft.^B	SWD	LWD	SWO	LWO		Width		Thickness	Overall Thickness (inches)	Open Area
¼"-#20	0.032	85	0.250	1.00	0.157		0.718	0.072	0.036		0.146	42%
¼"-#18	0.042	113	0.250	1.00	0.146		0.718	0.072	0.048		0.151	42%
½"-#20	0.032	42	0.500	1.20	0.407		0.938	0.072	0.036		0.146	71%
½"-#18	0.042	69	0.500	1.20	0.382		0.938	0.088	0.048		0.180	65%
½"-#16	0.053	85	0.500	1.20	0.372		0.938	0.087	0.060		0.183	65%
½"-#13	0.083	141	0.500	1.20	0.337		0.938	0.096	0.090		0.212	62%
¾"-#16	0.053	54	0.923	2.00	0.783		1.750	0.101	0.060		0.208	78%
¾"-#13	0.083	77	0.923	2.00	0.760		1.688	0.096	0.090		0.212	79%
¾"-#10	0.083	117	0.923	2.00	0.718		1.625	0.144	0.092		0.300	69%
¾"-#9	0.127	178	0.923	2.00	0.675		1.562	0.150	0.134		0.329	67%
1"-#16	0.053	43	1.00	2.40	0.872		2.062	0.087	0.060		0.183	83%
1½"-#18	0.042	20	1.33	3.00	1.229		2.625	0.068	0.048		0.144	90%
1½"-#16	0.053	40	1.33	3.00	1.184		2.625	0.108	0.060		0.221	84%
1½"-#13	0.083	58	1.33	3.00	1.160		2.500	0.105	0.090		0.228	84%
1½"-#10	0.083	76	1.33	3.00	1.132		2.500	0.138	0.090		0.288	79%
1½"-#9	0.127	119	1.33	3.00	1.087		2.375	0.144	0.134		0.318	78%
1½"-#6	0.184	247	1.33	3.00	0.979		2.313	0.203	0.198		0.452	69%
2"-#10	0.083	65	1.85	4.00	1.630		3.438	0.164	0.090		0.335	82%
2"-#9	0.127	88	1.85	4.00	1.603		3.375	0.149	0.134		0.327	84%
^A The minimum thickness is absolute, not subject to minus variation. ^B A variation in weight per square ft. of ±10 % is permissible, based on the weight of any sheet or bundle. ^C A tolerance of ±10 % is permitted in dimensions, center to center.

Production Workflow

Raw material

Our raw material steel plates are supplied by recognized companies such as Baosteel and Shougang Group. When the materials arrive, our quality control team performs detailed testing on chemical composition, dimensions, and related specifications to guarantee they meet or surpass quality requirements.

Stamping

Our company is equipped with advanced 4000 mm ultra-wide expanded metal manufacturing machines, as well as flattening and leveling equipment. We have developed and accumulated more than 1,000 types of precision molds for expanded metal, allowing us to satisfy customer demands for larger-sized materials. We can also select or customize new mesh patterns to meet requirements related to strength, appearance, ventilation, and shading.

Flattening

Our workshop is equipped with comprehensive deep-processing machinery such as cutting, flattening, bending, and welding equipment. With these capabilities, we can deliver customized processing solutions for expanded metal products to meet diverse application needs.

Leveling

Using high-precision leveling machinery, we ensure that the mesh surface remains flat, with evenly distributed openings and superior flatness tolerance. With many years of expertise and multiple CNC leveling machines, our skilled team optimizes operational parameters to maintain high productivity and consistent product quality.

Surface treatment

Our company offers a comprehensive range of surface treatment solutions, such as galvanizing, powder coating, anodizing, and PVDF coating. These finishes provide excellent durability and an appealing appearance for both functional and decorative uses.

Quality inspection

During manufacturing, our technical staff closely monitor processes such as punching, flattening, shearing, and leveling. This ensures that product quality can be evaluated continuously while also allowing us to detect and improve any weaknesses in the production process.

Packaging

Our packaging solutions are designed according to the chemical and physical properties of the products. Waterproof, moisture-resistant, and protective materials are used to minimize the risk of damage during shipping. We also offer customized packaging to meet individual customer specifications.
