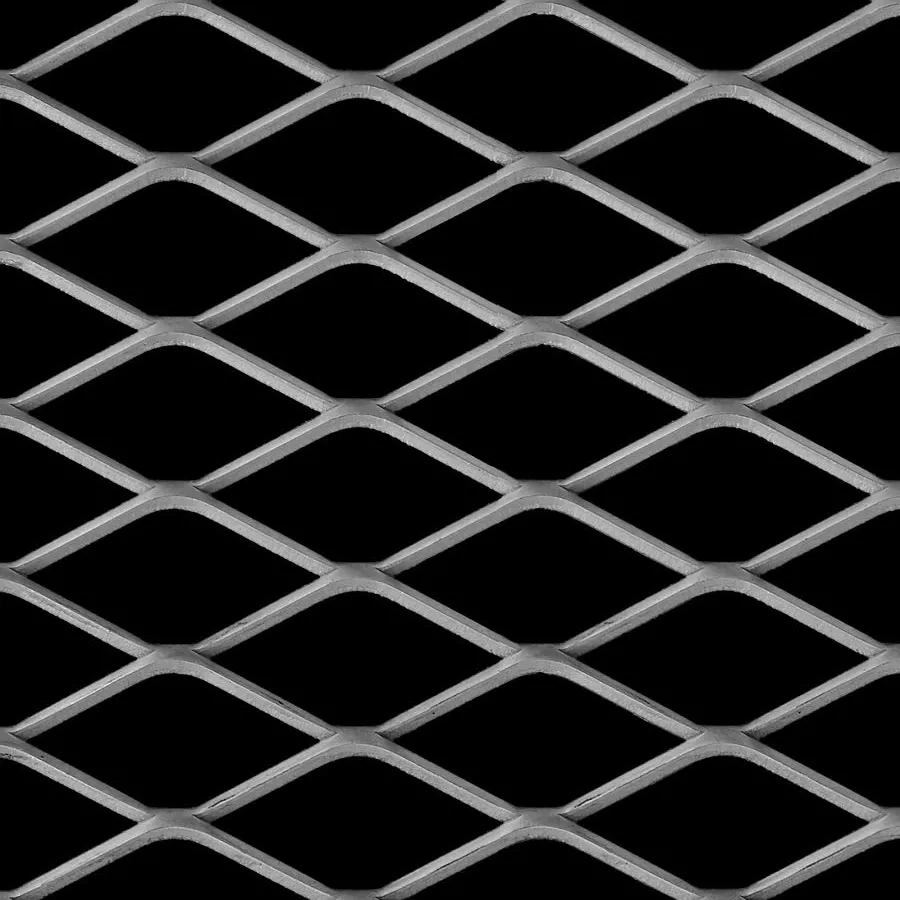

Stainless Steel Standard Expanded Metal

Details

Materials：Stainless Steel

Specification：Our capability covers LWD ranging from 0.75 mm up to 400 mm, and SWD ranging from 2 mm to 150 mm. Sheet thickness ranges from 0.3 mm to 15 mm, with a maximum width of 4000 mm.

Color：Customized Color

Packing：Customized Package

Category

Standard Expanded Metal

Send Inquiry

Anping Yilida Metal Wire Mesh Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel standard expanded metal in China. Welcome to buy bulk durable stainless steel standard expanded metal for sale here from our factory. If you have any enquiry about customized service, please feel free to email us.

Product Introduction

First, we will select high-quality stainless steel plates, typically of the 304/316 or 316L grades, to ensure excellent rust resistance, chemical corrosion resistance, and performance under extreme temperatures. Through cutting and stretching processes, regular slits are cut into the steel plates, which are then uniformly stretched to form a mesh structure with uniform holes, clear edges, and stable structure. Unlike welded mesh or woven mesh, expanded mesh has no welding points, which maintains the integrity of the stainless steel material and enhances its mechanical strength, making it more resistant to impact, pressure, and wear. The hole size, mesh thickness, and mesh shape (such as rhombus, square, or hexagon) can be customized according to specific application requirements, providing great flexibility for different usage scenarios.

In terms of application, stainless steel expanded mesh has a wide range of uses due to its outstanding performance. In the architectural field, it is commonly used as exterior wall cladding, ceiling decoration, partition screens, and stair railings, not only adding a modern and simple aesthetic to buildings but also playing roles in ventilation, light transmission, and safety protection. In the industrial sector, it is widely applied in equipment protection, filter screens, conveyor belts, and chemical reactor internals, thanks to its corrosion resistance and high strength that can adapt to harsh industrial environments. In the agricultural and environmental protection fields, it is used as greenhouse screens, aquaculture nets, and sewage treatment filters, effectively isolating impurities and ensuring the normal operation of related equipment. Additionally, it is also used in the automotive industry, aerospace, and daily necessities, such as car grilles, aircraft engine protection nets, and household window screens. With its excellent comprehensive performance and diverse customization options, stainless steel expanded mesh has become an indispensable key product in many fields, and its application scope is still expanding with the continuous advancement of manufacturing technology.

Hole Patterns

Diamond
Fan-shaped
Round
Gothic
Hexagonal

Product Specification

Specifications of Stainless Steel Standard Expanded Metal

Style	Minimum Thickness (inches)^A	Nominal Weight in lbs./100 Sq. Ft.^B	Design Size (inches)^C		Opening Size (inches)^C		Strand Size (inches)		Overall Thickness (inches)	Open Area
Style	Minimum Thickness (inches)^A	Nominal Weight in lbs./100 Sq. Ft.^B	SWD	LWD	SWO	LWO	Width	Thickness	Overall Thickness (inches)	Open Area
½"-#18	0.044	69	0.500	1.20	0.383	0.937	0.087	0.048	0.178	65%
½"-#16	0.055	87	0.500	1.20	0.372	0.937	0.087	0.060	0.183	65%
½"-#13	0.085	143	0.500	1.20	0.418	0.876	0.096	0.090	0.254	62%
¾"-#18	0.044	46	0.923	2.00	0.790	1.750	0.106	0.048	0.212	77%
¾"-#16	0.055	57	0.923	2.00	0.779	1.760	0.106	0.060	0.217	77%
¾"-#13	0.085	87	0.923	2.00	0.751	1.687	0.107	0.090	0.232	77%
¾"-#9	0.128	194	0.923	2.00	0.666	1.562	0.160	0.135	0.347	65%
1½"-#16	0.055	43	1.33	3.00	1.179	2.750	0.115	0.060	0.234	83%
1½"-#13	0.085	65	1.33	3.00	1.152	2.625	0.115	0.090	0.246	83%
1½"-#9	0.128	130	1.33	3.00	1.077	2.500	0.155	0.135	0.338	77%
^A The minimum thickness is absolute, not subject to minus variation. ^B A variation in weight per square ft. of ±10 % is permissible, based on the weight of any sheet or bundle. ^C A tolerance of ±10 % is permitted in dimensions, center to center.

Production Workflow

Raw material

Our steel plate raw materials are sourced from reputable suppliers such as Baosteel and Shougang Group. Upon receipt, our quality inspectors conduct thorough inspections, including chemical composition analysis, dimensional verification, and other relevant tests to ensure the materials meet or exceed the required quality standards.
Stamping

Our facility is equipped with 4000 mm ultra-wide expanded metal production machines, flattening machines, and leveling equipment. We have independently developed and accumulated more than 1,000 precision expanded metal molds, enabling us to meet customers' requirements for larger-sized expanded metal. Based on specific application needs, we can select or develop new hole patterns to achieve the desired performance in load capacity, appearance, ventilation, sun shading, and other functions.
Flattening

Our facility is equipped with cutting, flattening, bending, welding, and other advanced deep-processing equipment. We have the capability to provide customized processing and manufacturing services for expanded metal products to meet specific customer requirements.
Leveling

We utilize high-precision leveling equipment to ensure a smooth mesh surface, consistent openings, and industry-leading flatness tolerance. With years of experience and multiple CNC leveling machines, our professional team optimizes processing parameters while strict quality control guarantees efficient production and eliminates rework, delivering reliable and high-quality products.
Surface treatment

We offer a variety of surface treatment options, including galvanizing, powder coating, anodizing, and PVDF coating. These processes not only extend the service life of our expanded metal products but also enhance their visual appeal for architectural and decorative applications.
Quality inspection

Throughout the production process, our technicians conduct real-time monitoring of punching, flattening, shearing, and leveling operations. This enables continuous quality verification while also helping identify areas for improvement in the manufacturing process, ensuring ongoing enhancement of both our production line and product quality.
Packaging

Based on the chemical and physical characteristics of our products, we use waterproof, moisture-resistant, and impact-protective packaging materials to prevent damage during transportation. Customized packaging solutions are also available to meet specific customer requirements.
